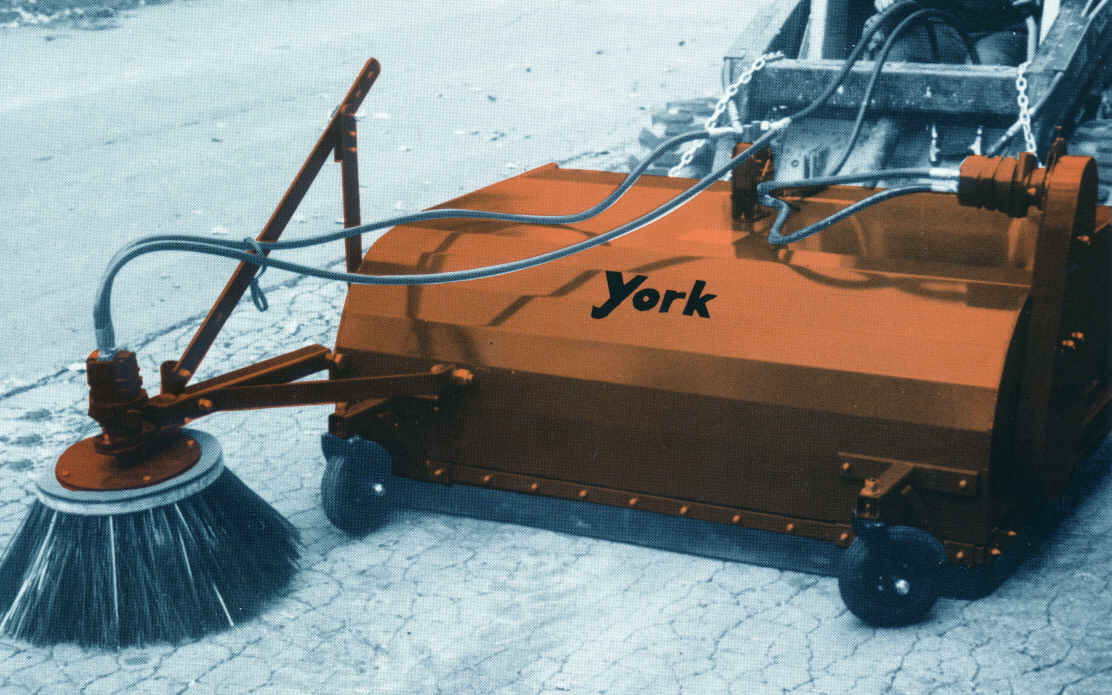

Model SSPU York Skid Steer Loader Mounted Sweeper

The Model SSPU York Sweeper mounts on your skid steer loader or tractor loader using the universal skid steer loader quick attach standard. The unit has its own integrated dirt/debris container that is part of the unit and attaches the sweeper to the loader arms just like your bucket does. The model SSPU is hydraulically powered, and has an optional gutter brush available. The model SSPU is available either 5 ft. or 6 ft. wide.

• Features/Specifications



• Features - Model SSPU Skid Steer Loader Mounted Sweeper



• Hydraulic drive is standard, equipped with a gerotor type hydraulic motor for smooth, reliable performance, York provides hydraulic hoses to the mounting frame



• Caster wheels are standard, used to assist the broom in following ground contours



• Optional gutter brush is available, allows the sweeper to brush up against curbs and in tight spots, the gutter brush may be mounted on either leading edge of the broom



• An optional flow control is also available to control the speed of the gutter brush for loaders that have hydraulic flows exceeding 25 gpm, this is a needed accessory if the hydraulic flow is above 25 gpm, otherwise gutter brush will spin too fast.



• Features/Specifications - Model SSPU York Broom



• Drive: Gerotor type hydraulic motor



• Hydraulic Requirements: 12-25 gpm, 1800-2250 PSI, 180 degrees F maximum allowable oil temperature (oil cooler may be required)



• Frame: mounts to skid steer quick attachment systems, proper mounting plate provided, specify Skid Steer make and model when ordering, frame is electrically welded steel



• Sweeper has integrated dirt container, that swings open and dumps when you lift the unit up and tilt it



• Caster wheels are standard



• Broom: 5 ft. or 6 ft. widths available, uses 24" diameter brush sections, 5 ft. model has 34 sections, 6 ft. model has 39 sections, polypropylene convoluted brush sections are standard, crimped wire or a 50/50 combination can be supplied at no additional cost, broom section is adjustable up and down to accommodate wear



• Prices



• Model 9405: Model SSPU skid steer mounted sweeper, 5 ft. pick-up broom, hydraulic drive, wt. 900 lbs. - Price is $5595.00 delivered (commercial and residential addresses), ships by truck



• Model 9406: Model SSPU skid steer mounted sweeper, 6 ft. pick-up broom, hydraulic drive, wt. 1050 lbs. - Price is $7035.00 delivered (commercial and residential addresses), ships by truck


• Accessories



• Model 0000960: Reversible gutter brush, wt. 103 lbs. - Price is $1045.00 plus $65.00 UPS shipping (no shipping for this item if ordered with a sweeper however)



• Model 0965: Hydraulic flow control valve, wt. 23 lbs., required when ordering gutter brush. The gutter brush will spin too fast unless you use this valve to reduce flow, and to reduce rpm's of gutter brush - Price is $395.00 plus $18.00 UPS shipping (no shipping on this item if ordered with a sweeper however)



• Sprinkler System To Fit Model SSPU



• Model 000940: SSPU Tank (you need to order tank and either the 5 ft. or 6 ft. spray system kit below for the system to be complete), 25 gallon capacity - Price is $265.00 plus $30.00 UPS shipping (no extra shipping on this item however if ordered with a sweeper)



• Model 000945: 5 ft. spray system, wt. 17 lbs. - Price is $559.00 delivered, ships by UPS



• Model 0946: 6 ft. spray system, wt. 20 lbs. - Price is $590.00 delivered, ships by UPS



• Note: Kits include: Pump, hose, nozzles and mounting hardware



• Note: Kits do not include tanks



• Note: Specify skid steer make and model when ordering



• Note: Specify polypropylene, crimped wire, or 50/50 combination when ordering



• Note: Units are crated, 5 ft. crate weighs 200 lbs., 6 ft. crate weights 225 lbs.




REPLACEMENT BRUSH SETS



• 6 3/8 INCH X 24 INCH DIAMETER FLAT BRUSH SECTIONS FOR SSPU SWEEPER



• 5 FT. BROOMS



• Model 999275: 5 ft. wide, 24 inch diameter all poly brush set with 35 brush sections and 33 wafer spacers - Price is $735.00 delivered (commercial and residential addresses), ships by truck



• Model 999285: 5 ft. wide, 24 inch diameter all wire brush set with 35 brush sections and 33 wafer spacers - Price is $810.00 delivered (commercial and residential addresses), ships by truck



• Model 999295: 5 ft. wide, 24 inch diameter 1/2 poly, 1/2 wire brush set with 18 flat poly brush sections and 17 flat wire brush sections and 33 wafer spacers - Price is $769.00 delivered (commercial and residential addresses), ships by truck



• 6 FT. BROOMS



• Model 999276: 6 ft. wide, 24 inch diameter all poly brush set with 41 poly brush sections and 38 wafer spacers - Price is $810.00 delivered (commercial and residential addresses), ships by truck



• Model 999286: 6 ft. wide, 24 inch diameter all wire brush set with 41 wire brush sections and 38 wafer spacers - Price is $910.00 delivered (commercial and residential addresses), ships by truck



• Model 999296: 6 ft. wide, 24 inch diameter 1/2 poly, 1/2 wire brush set with 24 flat poly brush sections and 24 flat wire brush sections and 38 flat wafer spacers - Price is $860.00 delivered (commercial and residential addresses), ships by truck
