Excavator Mounted Brush Shredder

The Brush Hound Excavator Mounted Brush Shredder safely cuts and mulches small trees, grass, and brush. The Brush Hound Flail Blade Cutting Head turns any excavator or backhoe into a long reach boom mower. Three widths are available, 30 inch, 40 inch and 50 inch working width cutter heads. The large 2 pound reversible, spiral mounted blades will cut and mulch trees and limbs up to 4 inches in diameter on the model 30 EX and 40EX, 6 inches in diameter on the model 40EX-HD, and up to 8 inches in diameter on the model 50EX-HD. Excavators under 16,000 lbs. in weight and with hydraulic system pressures with a relief valve at 3400 psi should use the 30EX or 30EX-HD models. These units use a hydraulic gear type motor with a maximum pressure capacity of 3400 psi.. Excavators larger than 16,000 lbs. and with a relief valve pressure above 3400 psi should us the 40EX, 40EX-HD or 50EX-HD models with a higher capacity piston type motor with a maximum pressure capacity of 5000 psi maximum.

Click Here To Expand This To A Full Page Version

To See Other Products - Click Here To Go To Our Index

Brush Hound Excavator Mounted Brush Shredder   Brush Hound Excavator Mounted Brush Shredder

Brush Hound Brush Shredder In Use   Heavy Duty Cutting Head With Heavy 2 LB. Flail Knives

  • Features/Specifications


    • Use For Underwater Cutting   Use For Underwater Cutting

  • Three widths are available - the 30 series model has a working with of 30 inches (overall cutting head width of 40 inches), 40 series models have a working width of 40 inches (overall width of 50 inches, 58 inches on the 40EX-HD), and the 50EX-HD model has a working width of 50 inches and a working width of 63 inches.


  • Model 30EX requires hydraulic flow of 8 gpm to give you a cutting capacity of 4 inches in diameter


  • The 30EX, and 30EX-HD models use a gear type hydrualic motor with a maximum relief pressure of 3400 psi, should used on systems with a relief valve pressure of 3400 psi or less. For excavators with relief pressures, the models 40EX, 40EX-HD, and 50EX-HD us piston type motors and allow for presures up to 5000 psi.


  • Model 40EX requires hydraulic flow of 13 gpm to give you a cutting capacity of 4 inches in diameter, model 40Extreme requires 24 gpm to give you a 6 inch diameter cutting capacity.


  • Model 50EX-HD requires 35 gpm at up 4000-5000 psi to give you a cutting capacity of 8 inches.


  • Safely cut and mulch material quickly:


  • The cutting head on the model 30EX uses 18 of the reversible 2.5 lb. standard style flail knives (9 connection points on rotor with a left and right facing knife), this unit has a 4 inch diameter cutting capacity


  • The cutting head on the model 30EX-HD mulching head uses what is called a tripple hammer knife which is 2 of the standard knives at the connection point, plus a straight knive in between, the tripple hammer knives give you smaller wood chips and longer knife life, the tripple hammer knive option adds 170 lbs. (extra knife weight and heavier rotor weight) versus the model 30EX, and requires 20 percent more horsepower. This unit has a 4 inch diameter cutting capacity.


  • The cutting head on the model 40EX uses what is called the Hammerhead rotor which features twelve, 2.75 lb. solid one piece shredding flails, this unit has a 4 inch diameter cutting capacity


  • The cutting head on the Model 40EX-HD uses the tripple hammer knives (12 left, 12 right facing and one straight knive at 12 connection points), this unit has a 6 inch diameter cutting capacity


  • The cutting head on the Model 50HD now has 15 new style one piece hardfaced hammer flails weighing 5.2 lbs. each, this unit has a 6 inch continual cutting capacity (8 inch intermittently)


  • Universal bolt on excavator bucket style mount, high strength welded steel unitized structure using grade 8 attachment bolts with wear washers, and a wire proof hardened cutter shaft protectors


  • Replaceable, hardened, skid shoes


  • Optional thumb saddle and ground roller available


  • Optional adjustable height ground roller available for all models


    • Model EX30 Brush Shredder For Mounting On Excavators And Backhoes Requires 8 GPM Auxillary Hydraulic Capacity
    Model EX30 Brush Shredder Features
    Model EX30 Brush Shredder Specifications
  • Model 30EX: Hydraulic powered flail blade brush shredder head, designed to mount on mini-excavators or backhoes, universal bolt on mount duplicates excavator or backhoe bucket attachment system, specify make, and model of excavator or backhoe, template or diagram may be needed to match, unit includes 100 inches of hydraulic hoses and 3/4 inch flat faced couplers, working width of mowing unit is 30 inches, overall width is 40 inches, wt. is 550 lbs., has 18 knives, cuts small trees and brush up to 4 inches in diameter - Price is $7980.00 delivered (price includes shipping to commercial and residential locations with normal delivery access in the U.S. 48 states), ships by truck


    • Click Here For Information On Cash Discounts
    Model 30EXHD Brush Shredder For Excavators 5 Tons And Larger In Weight
    Model 30EXHD Brush Shredder Features
    Model 30EXHD Brush Shredder Specifications
  • Model 30EX-HD: The model 30EX-HD has the same design as the 30EX but with tripple hammer knife option and thumbsaddle added. The result is smaller wood chips and longer knife life. This option adds 200 lbs. and requires 25 more hp to operate - Price is $9425.00 delivered (price includes shipping to commercial and residential locations with normal delivery access in the U.S. 48 states), ships by truck


    • Click Here For Information On Cash Discounts
    Model 40EX Hydraulic Powered Flail Blade Brush Shredder
    Features Model 40EX
    Specifications Model 40EX Brush Shredder
  • Model 40EX: Hydraulic powered flail blade brush shredder head, designed to mount on mini-excavators and backhoes, has 40 inch working width, requires 13 gpm hydraulic flow from your hydraulic system, has the heavy duty Hammerhead cutter drum with 12 large 2.75 lb. forged stredding hammers, has a cutting capacity of 4 inches in diameter, wt. is 732 lbs., includes universal bolt-on mount - duplicates the excavator or backhoe's bucket attachment system, specify make and model of backhoe or excavator, mower includes 100 inches of hydraulic hoses with 3/4 inch flat faced couplers - Price is $9649.00 delivered (price includes shipping to commercial and residential locations with normal delivery access in the U.S. 48 states), ships by truck


    • Click Here For Information On Cash Discounts
    Model 40EXHD Features

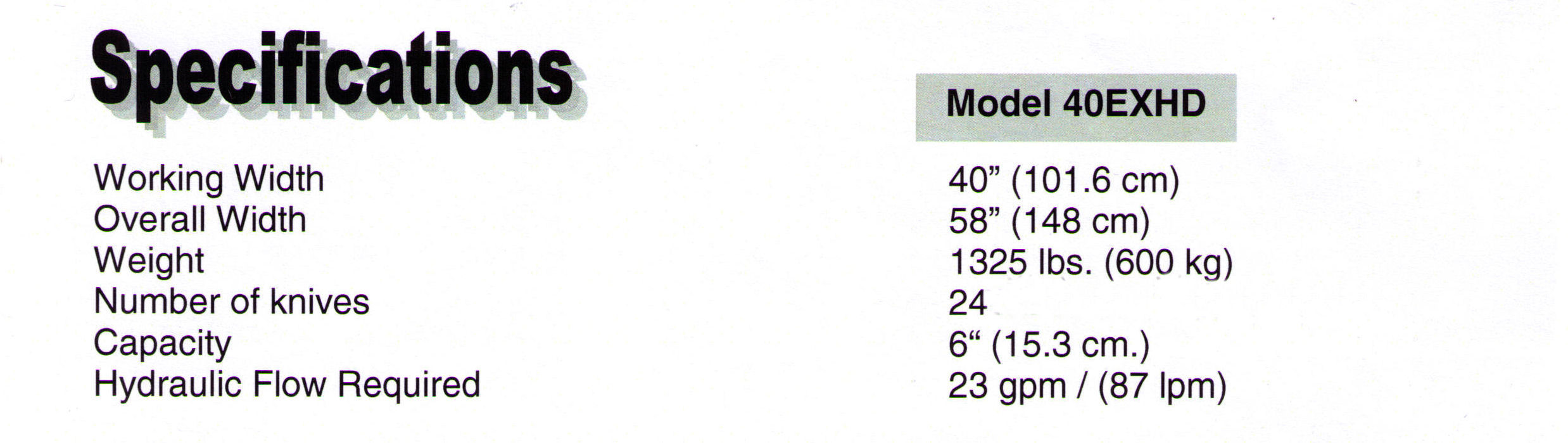

    Model 40EXHD Specifications
  • Model 40EX-HD: Model 40 Extreme Hydraulic powered flail blade brush shredder, designed to mount on medium sizes excavators and backhoes from 16,000 to 33,000 lbs. in size, has 40 inch working width, this is a high pressure model and requires minimum of 23 gpm to operate, optimum performance at 35 gpm @ 4500 psi, has 24 large flail cutting knives, has a cutting capacity of 6 inches in diameter, includes piston motor and case drain kit rated at 5000 psi maximum, wt. is 1325 lbs., includes universal bolt-on mount that duplicates the excavator or backhoe's bucket attachment system - specify make and model of backhoe or excavator a template of the mounting may be required, mower includes 78 inches of hydraulic hoses with 3/4 inch flat faced couplers, has 24 flail knives - Price is $17,290.00 delivered (price includes shipping to commercial and residential locations with normal delivery access in the U.S. 48 states), ships by truck


    • Click Here For Information On Cash Discounts
  • Model 50EX-HD


    • Model 50EXHD Heavy Duty Flail Blade Type Brush Shredder For 10 To 30 Ton Excavators
    Features Model 50EXHD Heavy Duty Brush Shredder For 10 To 30 Ton Excavators
    Specifications Model 50EXHD Heavy Duty Brush Shredder For 10 To 30 Ton Excavators
  • Cutting capacity if 6 inches continually, and 8 inches intermittently


  • Model 50EXHD: Heavy duty flail type brush cutter head with 50 inch working width, cutting drum uses 15, 5.2 lb. one piece hard faced hammer knives, gives you a 6 inch continual cutting capacity and (8 inches intermittently), cutter head is designed to mount onto large excavators, includes universal bolt on bucket style lugging included, includes hydraulic hoses and 1 inch flat faced couplers, accurate diagram of bucket style may be required, has operating weight of 2200 lbs., minimum knife tip speed of 450 ft. per second, heavily made shredder frame with .75 inch thick steel end plate thickness, reinforcement weldment is made from 3 inch x 3 inch tubing with a 1/2 inch wall thickness, cutter shield is 3/8 inch thick hot roll steel, and cutter drum is 6 inch schedule 80 tubing with 1/2 inch wall thickness, cutting deck rotates 160 degrees, cutting width is 50 inches, overall width of cutting head is 63 inches, overall height is 32 inches, adjustable and replaceable skid shoes for depth control when needed, high quality direct drive piston hydraulic motor, with reinforced poly isolaton mount, and electronically balanced, can accomodate excavators 100 hp +, requires a minimum hydraulic flow capacity of 35 gpm and up to 5000 psi - Price is $21,225.00 delivered (price includes shipping to commercial and residential locations with normal delivery access in the U.S. 48 states), ships by truck



    • Click Here For Information On Cash Discounts
  • Accessories


  • The standard EX models have a 2 piece knife (a left and right piece). These two pieces make up one complete knife.


  • For the 30EX brush cutter, it has 9 attachment points on the rotor, so order 18 halves (18 CD-2500 knives) for a complete knife set on the 30EX.


  • The 40 EX has 12 attachment point so order 24 CD-2500 knives for a complete knife set on the 40EX


  • Model CD-2500: 2 lb. replacement knife for all models above - Price is $11.66 each plus UPS shipping**


  • The HD models us a "Triple Hammer Knife" and also use a center straight blade between these two pieces (the CD2500 knives). To replace the complete knife on the HD models, you will order the number of CD2500s you need, along with 9 straight blades part number CD-2500C on the 30EX-HD model, and 12 straight blades part number CD-2500C on the 40EX-HD model.


  • Model 50EXHD uses the triple hammer knives and requires 30 of the CD-2500 curved knives, and 15 of the CD-2500C


  • Part number CD-2500C is $11.73 each plus shipping** for the straight blade.


  • The HD models again have what is called the "Triple Hammer Knives" which means that at each point (each flail knife) you have a CD-2500C in the center of the two CD-2500s.


  • You can change over and use only a standard CD-2500 knife set on the HD models, if you change all knives to this configuration (otherwise the rotor will be unbalanced and you will cause excessive wear on the drum and bearings). YOU SHOULD NOT HOWEVER USE THE TRIPLE HAMMER KNIVES (CD-2500 + CD-2500C) ON THE STANDARD EX MODELS.


  • **UPS Shipping: UPS shipping for a complete set of 18 knives for 30 series machines is $25.00; UPS shipping for a complete set of 24 knives for 40 series machines is $35.00; UPS shipping for a complete set of 30 knives for 50 series machine is $45.00. This shipping will apply for either the standard CD-2500 knife set or the Triple Hammer Sets (CD-2500 +CD2500C).


    • Thumb Saddle Accessory Allows You To Use Your Thumb To Pick Up Debris
  • Model BHTHB: Thumb Saddle Accessory with serrated side braces, replaces the motor cover and gives you an area to lay logs against and clamp against the cutter head frame using your excavator's hydraulic thumb, allows you to pick up obstacles - Price is $845.00 plus shipping (no extra shipping on this item when ordered with a shredder)


    • Custom Bolt On Adjustable Mount
  • Model BHMNT: Custom bolt on adjustable mount, purchase to replace or upgrade the standard mount, has a series of holes so mounting coupler can mount in different positions along the top of the mowing head, for mounting the 30 and 40 series cutting heads on excavators up to 12,000 lbs. maximum, includes four 1 inch grade 8 bolts - Price is $945.00 delivered (price includes shipping to commercial and residential locations with normal delivery access in the U.S. 48 states), ships by truck


  • Model BHMNTHD: Custom bolt on heavy duty adjustable mount, purchase to replace or upgrade the standard mount, has a series of holes so mounting coupler can mount in different positions along the top of the mowing head, heavy duty mount for mounting the 40HD, and 50EXHD cutting heads on excavators from 12,000 to 40,000 in weight, includes six 1 inch grade 8 mounting bolts - Price is $1495.00 delivered (price includes shipping to commercial and residential locations with normal delivery access in the U.S. 48 states), ships by truck


    • Manual Hydraulic Control Valve
  • Model BHHCU: Manual hydraulic control valve, splits the auxilliary hydraulic flow from the Brush Hound mowing head to the thumb function (so you can use the thumb and mowing head frame to pick up larger debris - us this valve in conjunction with the Thumb Saddle Accessory listed above) - Price is $430.00 delivered


  • Model BHSCB-01: Bolt on discharge chain guard, severe duty replacement discharge protection for model 30EX - Price is $510.00 per pair delivered (price includes shipping to locations with normal delivery access in the U.S. 48 states; locations in Alaska, Hawaii and outside the U.S. require additional shipping cost), ships by truck


  • Model BHSCB-02: Bolt on discharge chain guard, severe duty replacement discharge protection for model 40EX - Price is $550.00 per pair delivered delivered (price includes shipping to locations with normal delivery access in the U.S. 48 states; locations in Alaska, Hawaii and outside the U.S. require additional shipping cost), ships by truck


  • Model BHARR: Adjustable rear roller with bottom skid shoe on each end of roller, allows uniform height adjustment from 1.5 inches to 6 inches, available for all models - Price is $429.00 delivered (price includes shipping to locations with normal delivery access in the U.S. 48 states; locations in Alaska, Hawaii and outside the U.S. require additional shipping cost), on this item, extra shipping also applies if item is ordered separately without a mowing head, ships by UPS


    • Click Here For Available Cash Discounts

    We make every effort to keep prices current and correct as shown on our product pages. Prices do change frequently however; we will notify you of any changes when we receive your order so you can make any adjustments or changes to the order. We are not responsible for information or pricing on copies of our web pages on the search engines that are out of date. If you navigated to this page by clicking a link in the search engine listings, then click on the reload button on your browser to make sure you are viewing a current version of this page from our website. You can also go to www.wikco.com and link to this page from our index.
