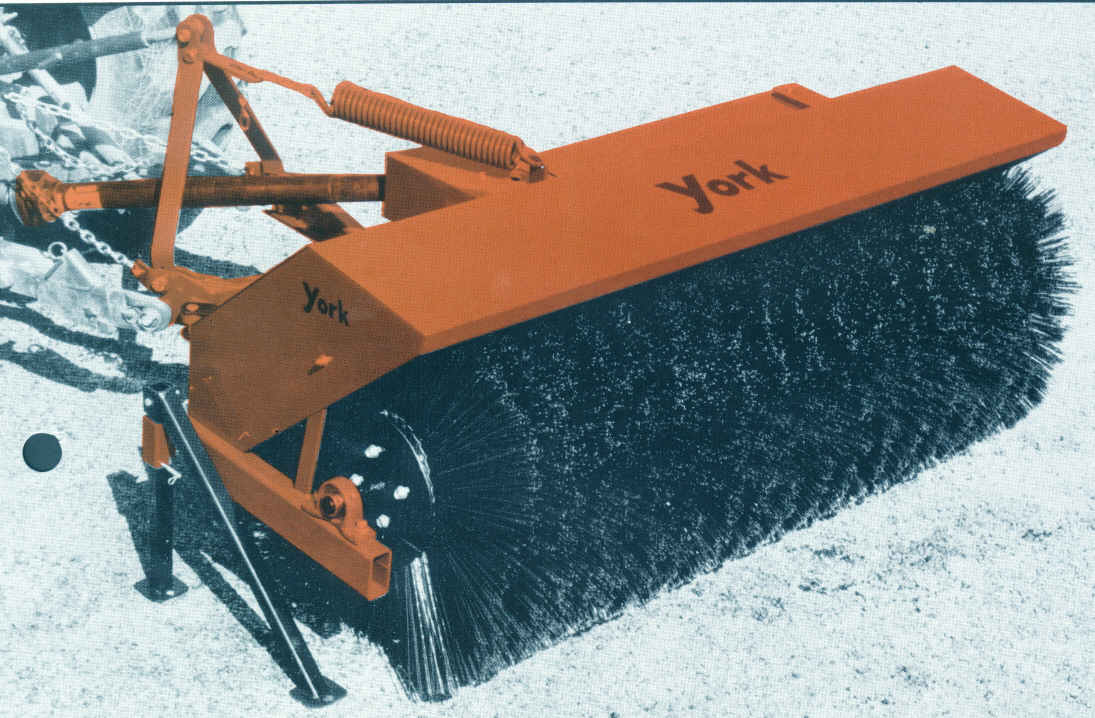

Model YB32 3 Point Hitch Mounted Sweeper

The York Model YB32 Sweeper is a 3 point hitch mount, pto powered sweeper that mounts on small and medium sized utility tractors with either a category I or category II 3 point hitch. Standard set up is 540 rpm pto drive, or specify at time of order, hydraulic drive is available at addtional cost. This sweeper is the next size up from the model YB24, and is available in widths of 6 ft., 7 ft., and 8ft., with a larger diameter 32" brush. The YB32 is a high quality sweeper designed for use by contractors, landscapers, municipalities, institutions, farmers, and others. The YB32 can be used for general cleanup, final site cleanup, dethatching, and snow removal.

• Features/Specifications



• Features YB32 Sweeper


• Reversible Drive (Standard): Equipped with a reversible drive gear box as standard equipment, flip gear box over to reverse


• Storage Stands (Standard): To protect the broom during maintenance and storage, the YB32 has been equipped with single point raise/lower stands on each side


• Angling (Standard): Manual angle adjustment allows a maximum angle of 30 degrees left or right, unit is also designed to accept a standard 10" stroke cylinder to convert the unit to hydraulic angle.


• Deflectors (Optional): 3 types of dirt deflectors are available to protect operator from dust and flying debris






• Specifications YB32 Sweeper


• Drive: Pto driven at 540 rpm, reversible gearbox is standard


• Hitch: Standard category I or II 3 point hitch


• Frame: Electrically welded steel


• Angling: Manually left or right 30 degrees, can be converted to hydraulic angling using a 10" stroke cylinder


• Storage/Maintenance stands are standard


• Floatation: Broom floats on adjustable spring chain assembly


• Broom: 6 ft., 7 ft., or 8 ft. wide by 32" diameter broom, minimum working width / 8 ft. - 85", 7 ft. - 75", 6 ft. - 65", number of brush sections / 8 ft. - 48, 7 ft. - 42, 6 ft. - 36


• Polypropylene convoluted brush sections are standard, crimped wire or a 50/50 combination can be supplied at no additional cost


• Broom drum is mounted on pillow block bearings for easy maintenance and repair


• Weight: 8 ft. - 789 lbs., 7 ft. - 738 lbs., 6 ft. - 687 lbs.,


• Model 9876: Model YB326, 3 pt. hitch mounted 6 ft. wide broom, pto driven - Price is $3987.00 delivered, (commercial and residential addresses), ships by truck



• Model 9877: Model YB327, 3 pt. hitch mounted 7 ft. wide broom, pto driven - Price is $4430.00 delivered, (commercial and residential addresses), ships by truck



• Model 9878: Model YB328, 3 pt. hitch mounted 8 ft. wide broom, pto driven - Price is $4932.00 delivered, (commercial and residential addresses), ships by truck



• Note: For hydraulic drive, specify when ordering and add $150.00 to cost.


• Note: Specify polypropylene, crimped wire or 50/50 combination broom when ordering


• Note: Units are crated, weights above are the broom weights, total weight add 200 to 250 lbs. for crate





• Options For York 4 ft. to 8 ft. Sweepers


• 10 INCH X 32 INCH DIAMETER BRUSH SECTIONS FOR YB32 SWEEPERS


• Model 999306: 6 ft. wide, 32 inch diameter all poly brush set with 36 all poly convoluted brush sections - Price is $609.00 delivered, (commercial and residential addresses), ships by truck


• Model 999316: 6 ft. wide, 32 inch diameter all wire brush set with 36 all wire convoluted brush sections - Price is $699.00 delivered, (commercial and residential addresses), ships by truck


• Model 999326: 6 ft. wide, 32 inch diameter 1/2 poly, 1/2 wire brush set with 19 all poly convoluted brush sections, and 17 all wire convoluted brush sections - Price is $619.00 delivered, (commercial and residential addresses), ships by truck


• Model 999307: 7 ft. wide 32 inch diameter all poly brush set with 42 convoluted brush sections - Price is $679.00 delivered, (commercial and residential addresses), ships by truck


• Model 999317: 7 ft. wide 32 inch diameter all wire brush set with 42 convoluted brush sections - Price is $779.00 delivered, (commercial and residential addresses), ships by truck


• Model 999327: 7 ft. wide 32 inch diameter 1/2 poly, 1/2 wire brush set with 22 convoluted poly brush sections and 20 all wire brush sections - Price is $729.00 delivered, (commercial and residential addresses), ships by truck


• Model 999308: 8 ft. wide 32 inch diameter all poly brush set with 48 all poly convoluted brush sections - Price is $749.00 delivered, (commercial and residential addresses), ships by truck


• Model 999318: 8 ft. wide, 32 inch diameter all wire brush set with 48 all wire convoluted brush sections - Price is $839.00 delivered, (commercial and residential addresses), ships by truck


• Model 999328: 8 ft. wide, 32 inch diameter 1/2 poly, 1/2 wire brush set with 25 all poly convoluted brush sections, and 23 all wire convoluted brush sections - Price is $789.00 delivered, (commercial and residential addresses), ships by truck


• Top Metal Deflectors - Deflects Heavy Debris And Some Dust


• Part 0924: Top metal deflector 4 ft. wide - Price is $108.00 plus shipping


• Part 0925: Top metal deflector 5 ft. wide - Price is $116.00 plus shipping


• Part 0926: Top metal deflector 6 ft. wide - Price is $119.00 plus shipping


• Part 0927: Top metal deflector 7 ft. wide - Price is $129.00 plus shipping


• Part 0928: Top metal deflector 8 ft. wide - Price is $139.00 plus shipping


• Optional Deflectors For 4 ft., 5 ft., 6 ft., 7 ft. And 8 ft. Brooms - Add On To Top Metal Deflector For Added Dust Control


• Part 0914: Rubber broom deflector 4 ft. wide - Price is $125.00 plus shipping


• Part 0915: Rubber broom deflector 5 ft. wide - Price is $158.00 plus shipping


• Part 0916: Rubber broom deflector 6 ft. wide - Price is $189.00 plus shipping


• Part 0917: Rubber broom deflector 7 ft. wide - Price is $219.00 plus shipping


• Part 0918: Rubber broom deflector 8 ft. wide - Price is $249.00 plus shipping


• Sprinkler Systems - To Fit Models YB24, YB32, TFB, HTB, And SSAB - For Maximum Dust Control


• Model 0930: YB32/24 tank, 25 gallon capacity - Price is $324.00 plus shipping


• Model 0934: 4 ft. spray system, wt. 14 lbs. - Price is $436.00 plus shipping


• Model 0935: 5 ft. spray system, wt. 17 lbs. - Price is $467.00 plus shipping


• Model 0936: 6 ft. spray system, wt. 20 lbs. - Price is $496.00 plus shipping


• Model 0937: 7 ft. spray system, wt. 23 lbs. - Price is $525.00 plus shipping


• Model 0938: 8 ft. spray system, wt. 26 lbs. - Price is $545.00 plus shipping


• Sprinkler System To Fit Model SSPU


• Model 0945: 5 ft. spray system, wt. 17 lbs. - Price is $467.00 plus shipping


• Model 0946: 6 ft. spray system, wt. 20 lbs. - Price is $496.00 plus shipping


• Note: Kits include: Pump, hose, nozzles and mounting hardware


• Note: Kits do not include tanks


• Hydraulic Systems


• Model 0970: Independent hydraulic system for use on units with inadequate hydraulics. Unit is driven by the 540 rpm pto


• Unit Includes: tank, pump, filter and 3 pt. hitch frame, installer must supply hoses between the unit and the broom, wt. 175 lbs. - Price is $2349.00 delivered
