Regular Duty Series Rear Tractor Blades

Our Regular Duty Series Rear Tractor Blades come in several two series F and T. F series blades are designed for tractors up through 45 hp, and T series is designed for tractors up through 65 hp. Widths are available from 5 ft. to 7 ft. depending upon the series. The F series is especially good for light road maintenance, lawn care, gardening, and other light duty landscaping applications. The blades can be used year around for leveling ground, roadside clearing, and snow removal. The F series blades have manual offset, angle, and tilt, and are available in 5 ft. and 6 ft. widths. The T series blades are made for the same type applications, landscaping work, but are made heavier as they are designed to be used on tractors up through 65 hp.

Also available are the NVH Series Tractor Blades are the next size up in width and quality, and are available in widths of 7 ft., 8 ft., and 9 ft.. The 7 ft. model is recommended for tractors up through 65 hp., and the 8 and 9 ft. models are recommended for tractors up through 80 hp.. The models all come standard with manual angle, offset, and tilt. A cylinder kit is available as an option to convert the unit from manual offset control to hydraulic offset control. The angle and tilt functions would still operate manually on the NVH series.

• Features/Specifications


• Regular duty series blades are available in moldboard widths of 5 ft., 6 ft., 7 ft., 8 ft., 9 ft., and 10 ft.
• Regular duty series are ideal for light leveling, landscaping, and road maintenance, as well as snow removal and feed lot clean up
• All blades have tilt, angling, and offset adjustment. These functions are controlled manually, but some models have hydraulic angling and offset as an option
• All blades feature heavy steel construction, and have reversible and replaceable cutting edges







• King Pin size is 3 inches
• Reversible and replaceable cutting edge is standard for all models
• These blades cut and roll material because of the special shape of the moldboard - does not drag the material





• Specifications F Series Blades


• Moldboard width of either 5 or 6 ft. depending upon model, wt. is 250 and 280 lbs. respectively


• Moldboard height is 12 1/2 inches and 1/4 inch thick


• Cutting edge is constructed of 1/2 inch thick by 6 inch high carbon-steel, blade is reversible and interchangeable


• Maximum tractor hp is 45


• Mounts on your tractor's category 1 three point hitch


• Has swing angle pinned positions at 20, 40, and 60 degrees either left or right, in either forward or reverse positions


• Offset adjustment is 0 to 12 inches left or right, and tilt adjustment is 0 degrees to 20 degrees up or down


• Total swing angle is 360 degrees


• Blade has a parking stand standard


• Model BINVHF-152: 5 ft. wide blade, 3 pt. hitch mount, with manual angle, offset, and tilt, with 1/2 inch thick by 6 inch high reversible cutting edge, wt. is 250 lbs. - Price is $690.00 delivered, (to commercial/business locations - please add $50.00 for residential delivery (see our order form)



• Model BINVHF-182: 6 ft. wide blade, 3 pt. hitch mount, with manual angle, offset, and tilt, with 1/2 inch thick by 6 inch high reversible cutting edge, wt. is 280 lbs. - Price is $735.00 delivered, (to commercial/business locations - please add $50.00 for residential delivery (see our order form)



• Model BINVHF-212: 7 ft. wide blade, 3 pt. hitch mount, with manual angle, offset, and tilt, with 1/2 inch thick by 6 inch high reversible cutting edge, wt. is 320 lbs. - Price is $790.00 delivered, (to commercial/business locations - please add $50.00 for residential delivery (see our order form)

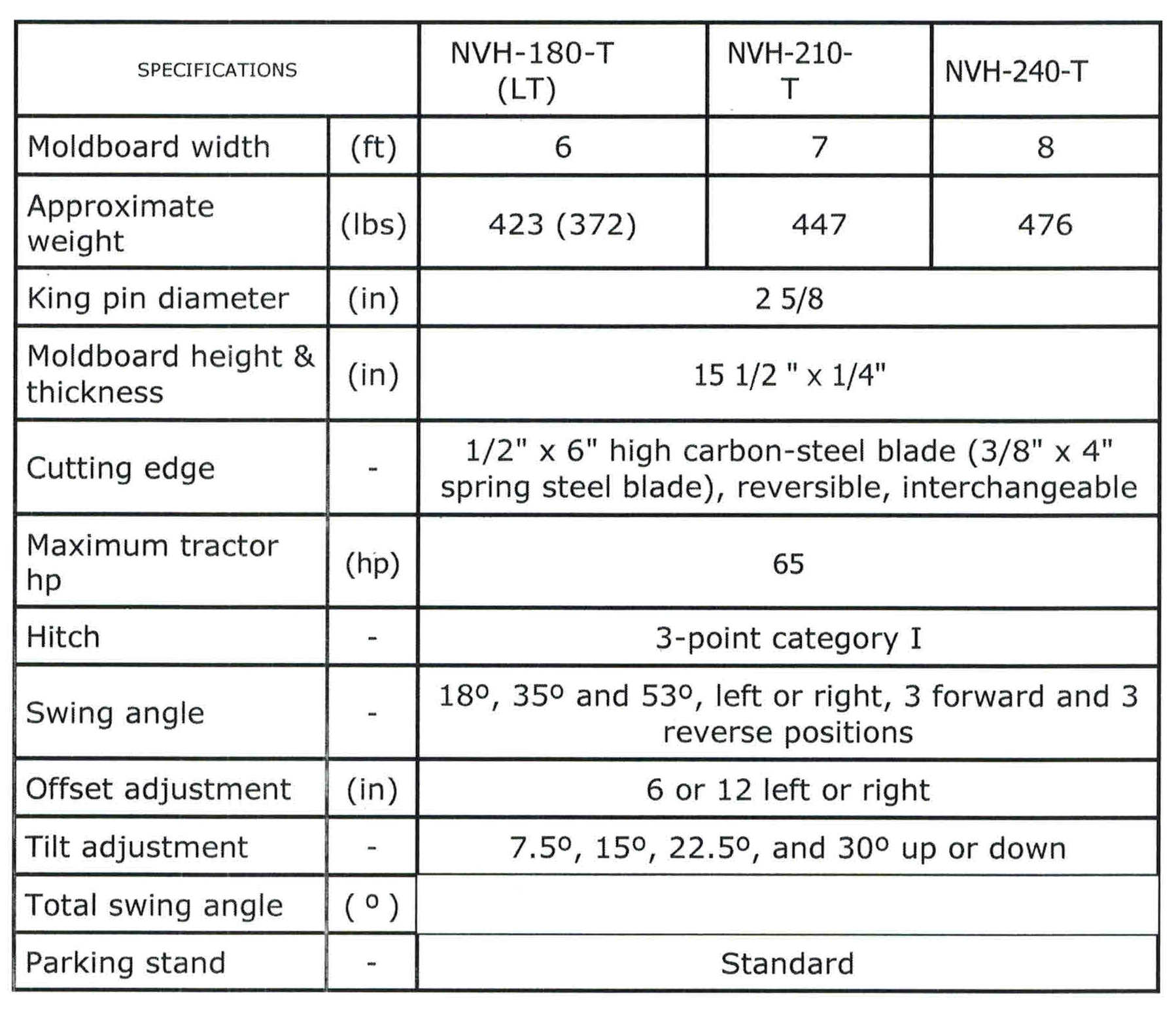

• Features/Specifications - T Series Blades


• Available in widths of 6 ft. and 7 ft. wide, with moldboard thickness of 1/4 inch and 15 1/2 inches high


• The heavy duty King Pin (pivot pin) is 2 5/8 inches in diameter


• The cutting edge is 1/2 inch thick x 6 inches high on T series


• Maximum tractor hp size for T series is 65 hp


• Mounts to your tractor's category 1 three point hitch


• Swing angle is 18, 35, and 53 degrees to the left or right, with the blade in either the forward or reverse positions


• Offset adjustment is 6 or 12 inches left or right


• Tilt adjustment is 7.5, 15, 22.5, and 30 degrees up or down


• Parking stand is included


• Model BINVH-180-T: T series blade, 6 ft. wide blade with manual angle, offset, and tilt, with 1/2 inch thick x 6 inch tall cutting edge, wt. is 386 lbs. - Price is $988.00 delivered (to commercial/business addresses or terminal - for residential delivery see our order form



• Model BINFH-210-T: T series blade, 7 ft. wide blade with manual angle, offset, and tilt, with 1/2 inch thick x 6 inch cutting edge, wt. is 405 lbs. - Price is $1029.00 delivered, (to commercial/business addresses or terminal - for residential delivery see our order form



• Options



• BIC6100001: Skid shoes per pair, wt. is 12 lbs., these are the round pad type as on snow plow blades - Price is $80.00 per set delivered


• BIC6200001: End plates per pair, turn your blade into a box blade when needed - Price is $83.00 per pair, delivered


• NVH Series Blades







• Model NVH-210: 7 ft. wide blade designed to mount on tractors from up to 65 hp with category 2 three point hitches, blade wt. is 677 lbs., king pin diameter is 3 inches, moldboard height is 18 inches, moldboard thickness is 1/4 inches, moldboard cutting edge is 1/2 inch thick x 6 inches high and is reversible, swing angle is left or right at 3 postions each side - 15, 30, and 45 degrees, and has three reverse postions left or right, maximum offset adjustment is 18 inches left or right and can be controlled manually (standard) or hydraulically (optional), tilt adjustment is manual up or down at three settings - 7.5, 15, and 22.5 degrees, total swing angle is 360 degrees - Price is $1695.00 delivered, ships by truck



• Model NVH-240: 8 ft. wide blade designed to mount on tractors up to 80 hp with category 2 three point hitches, blade wt. is 708 lbs., king pin diameter is 3 inches, moldboard height is 18 inches, moldboard thickness is 1/4 inches, moldboard cutting edge is 1/2 inch thick x 6 inches high and is reversible, swing angle is left or right at three positions each side - 15, 30, and 45 degrees, and has three reverse positions left or right, offset adjustment is 18 inches left or right and can be controlled manually (standard) or hydraulically (optional), tilt adjustment is up or down at three settings - 7.5, 15, and 22.5 degrees, total swing angle is 360 degrees - Price is $1835.00 delivered, ships by truck



• Model NVH-270: 9 ft. wide blade designed to mount on tractors up to 80 hp with category 2 three point hitches, blade wt. is 800 lbs., king pin diameter is 3 inches, moldboard height is 18 inches, moldboard thickness is 1/4 inches, moldboard cutting edge is 1/2 inch thick x 6 inches high and is reversible, swing angle is left or right at three positions each side - 15, 30, and 45 degrees, and has three reverse positions left or right, offset adjustment is 18 inches left or right and can be controlled manually (standard) or hydraulically (optional), tilt adjustment is up or down at three settings - 7.5, 15, and 22.5 degrees, total swing angle is 360 degrees - Price is $1955.00 delivered, ships by truck



• Options


• BIC6200003: End plates per pair, end plates bolt on to convert your blade to a box blade - Price is $94.00 plus shipping (shipping paid on accessories ordered with a blade)


• BIC6100002: Skid shoes per pair - pad type skid shoes - Price is $97.00 plus shipping (shipping paid on accessories ordered with a blade)


• CR308DU: 3 inch bore x 8 inch stroke cylinder for hydraulic offset function only - Price is $105.00 plus shipping (shipping paid on accessories ordered with a blade)


• CR8.5 8 1/2 ft. hydraulic hose with male pipe on both ends - Price is $21.00 plus shipping (shipping paid on accessories ordered with a blade)
